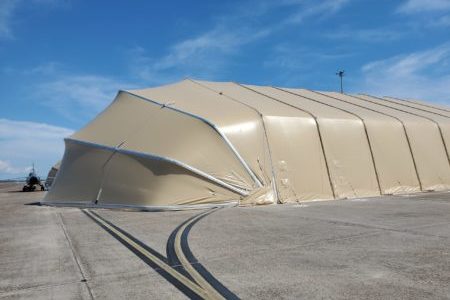

Large Area Maintenance Shelters (LAMS)
Created to be used anywhere, the CELINA LAMS is a fully mobile, pre-assembled shelter that is commonly used for storage or maintenance areas. With a wide array of shelter options to fine tune the shelter to your specific needs, the CELINA LAMS can be fully adapted to any situation.
Designed for use in a wide variety of situations
Deployable in 20’ ISO containers
Gable wall and eyelid door options for maximum versatility
Fully relocatable and ground deployable
The Modular Large Area Maintenance Shelter (MLAMS) types Aviation (A), Vehicle (V) and Storage (S), are intended for military use as tactical field maintenance facilities for field repair and maintenance of Army helicopters (Type A), some fixed wing aircraft (Type A), ground vehicles (Type V) and general storage (Type S) respectively.
This is a large frame supported tension fabric structure use to rapidly emplace large facilities (maintenance bays, supply sites, personnel holding areas, etc.) in deployed areas.
Features
Tan 686A (color #33446) or camouflage green 483 fabric color options
Pre-Engineered Aluminum frame support system
Fully relocatable and ground deployable
Pre-assembled hardware minimizing on-site assembly
Integrated keder tracks for simple fabric attachment
Modular design allows for expandability
Specifications
Engineered to 90 mph wind load (up to 115 mph avail)
Engineered 8 psf of snow for up to 12 hours (up to 20 psf avail)
Rain load of 4” per hour with 40 mph winds
Water-resistant, flame-retardant fabric (MIL-PRF-32504)
Berry Amendment Compliant
75' x 195' • Aviation (Type A)
C23075X195TT-T
Allows aircrafts to be housed and serviced. Contains retractable Tri-Lid doors on both ends that open the entire width of the structure. This allows aircraft and large vehicles to enter/exit the shelter.
• Provides open, weather protected workspace
• Dimensions : 75’W x 195’L, 16’ Eaves
• End Configuration: Tri-Lid, both ends
• NSN: 8340-01-707-9507
75' x 132' • Vehicle (Type V)
C23075X132TT-T
Has doors sized for various types of vehicles and provides space for storage and maintenance. Contains retractable Tri-Lid doors on both ends that open the entire width of the structure.
• Provides open, weather protected workspace
• Dimensions : 75’W x 132’L, 16’ Eaves
• End Configuration: Tri-Lid, both ends
• NSN: 8340-01-808-9546
52' x 63' • Storage (Type S)
C23052X063GG-T
This is the basic style MLAMS used for general storage. Door options include standard personnel and vehicle door styles
• Provides space for general storage
• Dimensions : 52’W x 63’L, 16’ Eaves
• End Configuration: Gable (flat), both ends
52' x 50'
C23052X050GG-T (Tan)
C23052X050GG-G (Green)
This is the basic style LAMS used for general storage. Door options include standard personnel and vehicle door styles.
• Provides space for general storage
• Dimensions : 52’W x 50’L, 16’ Eaves
• End Configuration: Gable (flat), both ends
• NSN: 8340-01-721-3551 (Tan)
• NSN: 8340-01-721-3526 (Green)
Configure to Order (CTO) – Uses common components from LAMS S, A, V and UAV specifications to meet customer requirements.
75' x 122' • Storage (CTO)
C23075X122TG-T
Has doors sized for various types of vehicles and provides space for storage and maintenance. Contains retractable Tri-Lid door that opens the entire width of the structure and a gable (flat) end.
• Provides open, weather protected workspace
• Dimensions : 75’W x 122’L, 16’ Eaves
• End Configuration: Tri-Lid end, Gable (flat) end
Type UAV/Drone, includes a retractable Tri-lid Eyelid Door, allowing for full-width entries when in the open state and protection from environmental elements when in the closed state, and gable end wall with sliding fabric door. This shelter also includes vehicle and personnel side doors, allowing for easy access. CELINA’s LAMS are designed for various uses, including maintenance space, general purpose, general storage, training space, and aircraft hangers. This expeditionary shelter design is completely mobile and relocatable, and can be deployed on any ground type. Pre-assembled hardware allows for quick shelter installation. CELINA’s Large Area Maintenance Shelters are Berry Compliant.
83' x 142'
C23083X142TG-T (Tan)
C23083X142TG-G (Green)
• Dimensions : 83’W x 142’L, 10’ Eaves
• End Configuration: Tri-Lid end, Gable (flat) end
• NSN: 8340-01-721-4062 (Tan)
• NSN: 8340-01-721-4045 (Green)
83' x 164'
C23083X164TT-T (Tan)
C23083X164TT-G (Green)
• Dimensions : 83’W x 164’L, 10’ Eaves
• End Configuration: Tri-Lid end, Gable (flat) end
• NSN: 8340-01-721-4108 (Tan)
• NSN: 8340-01-721-4101 (Green)
Bi-Lid
Tri-Lid
Gable
